18650 Battery Charging Module with USB Input

Optimize your 18650 battery charging with this advanced Charging Module for 18650. Perfect for DIY electronics, power banks, and battery-powered projects, this module offers safe and efficient charging with robust protection features.

Key Features of USB Charging and Protection Module for 18650 Batteries

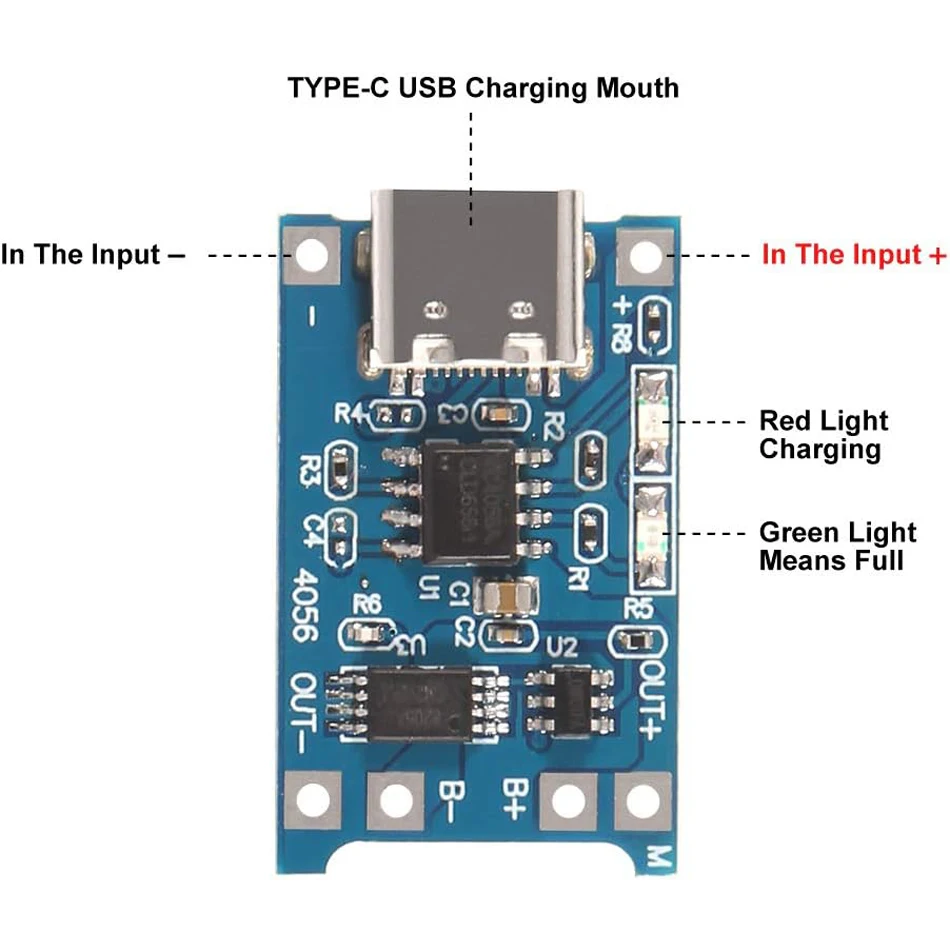

• Multiple Charging Inputs: Supports both Type-C USB and Micro USB interfaces, providing flexibility for different charging setups.
• Reliable Battery Protection:
  • Overcharge Protection activates at 4.00V to prevent battery damage.
  • Overcurrent Protection safeguards your 18650 battery with a 3A limit.
• LED Indicators for Status:
  • Red light indicates the charging process.
  • Green light signals when the battery is fully charged.
• Efficient Charging: Provides a maximum charging current of 1000mA, ensuring fast and reliable battery recharge.

Specifications

• Input Interface: Type-C USB / Micro USB
• Overcharge Voltage: 4.00V
• Overcurrent Protection: 3A
• Maximum Charging Current: 1000mA
• LED Indicators:
  • No load: No light
  • Charging: Red
  • Fully charged: Green

How It Helps in DIY Projects

• Build Your Own Power Banks: Safely and efficiently charge your 18650 cells for custom power banks.
• Battery-Powered Gadgets: Perfect for projects requiring a safe and reliable battery charging solution.
• Learning Tool for Electronics: An excellent choice for hobbyists to explore and learn about battery management and protection.

Usage Instructions

1. Connect the module to a power source using either the Type-C USB or Micro USB input.
2. Attach your 18650 lithium battery to the module.
3. Check the LED light:
   • Red for charging.
   • Green when fully charged.
4. Enjoy safe, effective charging and extended battery life.
