DIY AM/FM Radio Kit – Stereo Digital Tuning, 2 Band Kit for Electronics Learning

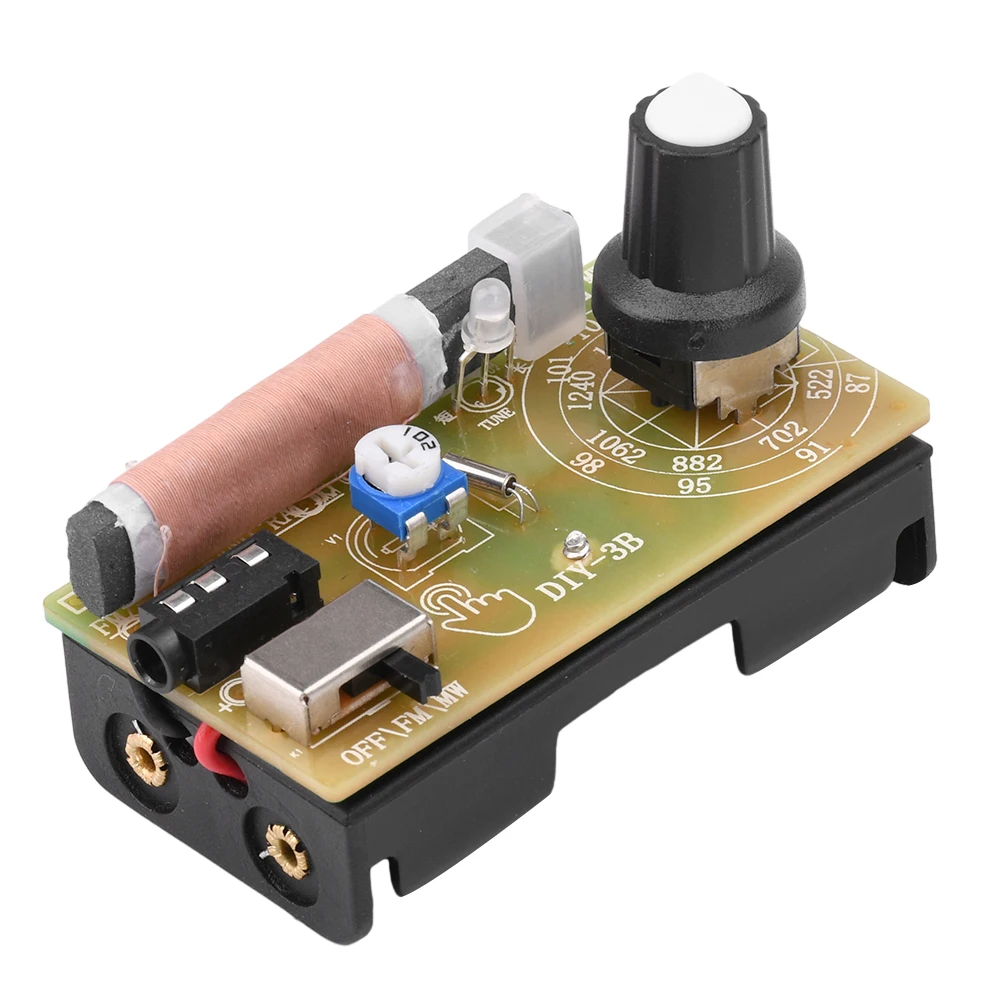

DIY AM/FM Radio Kit – Build Your Own Stereo Tuner

Unlock the exciting world of electronics with this DIY AM/FM Radio Kit, perfect for beginners and enthusiasts alike! This kit allows you to create your very own AM/FM medium wave radio with a digital stereo tuner, all while learning essential electronics concepts. Whether you’re a student or a DIY hobbyist, this kit will help you gain practical experience in assembling and understanding circuits.

Product Features:

• High-Quality PCB Boards: The kit includes high-quality PCB boards, giving you the option to either solder the components yourself or opt for a pre-welded version.
• Dual Band FM/AM Radio: The kit supports both AM and FM bands, with easy manual tuning for AM and stereo digital tuning for FM.
• Multiple Power Supply Options: Choose between AA battery power supply (2 AA batteries, not included) or a convenient TYPE-C USB interface for DC 5V power.
• Easy to Use: Simply install two AA batteries or connect the TYPE-C port, press the power button, insert the stereo headphones, and enjoy your favorite stations!
• Comprehensive DIY Learning: Includes a wide range of electronic components, perfect for learning about circuits and developing your soldering skills.
• Compact & Convenient: The kit features a compact PCB board (60mm x 32mm) and a standard 3.5mm headphone jack for easy audio connection.

Usage Instructions:

1. Insert two AA batteries or connect the device to a DC 5V power source via the TYPE-C port.
2. Press the power switch to turn on the radio. The display will light up, and the radio will automatically begin searching for stations.
3. Use the tuning buttons to adjust the frequency or store your favorite stations.
4. If no button is pressed within 59 minutes, the anti-drowsiness feature will activate, turning off the radio to save power.

Specifications:

• Frequency Range: 87.0 – 108.0 MHz (FM), AM Band included
• Power Supply: AA batteries (2) or TYPE-C USB (DC 5V)
• Audio Output Power: 20 mW
• Stereo Separation: 26dB
• Signal-to-Noise Ratio: 54dB
• Storage: Up to 63 stations
• Size: PCB board 60mm x 32mm

Why Choose This DIY Radio Kit?

• Ideal for students and engineers to develop hands-on skills in electronics.
• A fun and educational way to understand radio technology, soldering, and circuit building.
• Perfect for DIY hobbyists looking to build something practical and functional.
