Frequency Counter DIY Kit | 1Hz-75MHz Digital Cymometer Module

Frequency Counter DIY Kit: A Must-Have for Arduino Enthusiasts

Explore the world of frequency measurement with the Frequency Counter DIY Kit. Designed for tech enthusiasts and DIYers, this versatile kit offers precision, compactness, and functionality, making it a perfect addition to your Arduino projects.

Features:

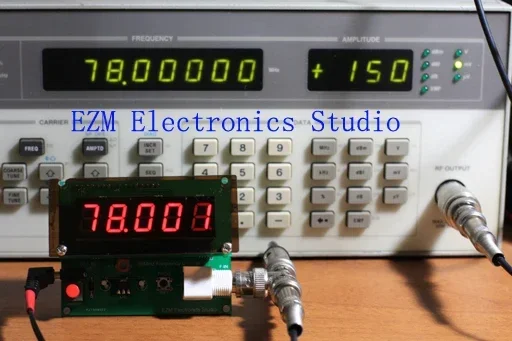

• Wide Frequency Range: Measures frequencies from 1Hz to 75MHz, with practical usability up to 78MHz.
• High Resolution: Four or five-digit display resolution for clear and accurate readings.
• Automatic Range Switching: Adapts to varying gate times for seamless measurements.
• Programmable Offset Addition/Subtraction: Customize frequency offsets for diverse applications.
• High Sensitivity: Detects signals as low as 20mV RMS at low frequencies and up to 75mV at 50MHz.
• Power-Saving Mode: Automatically shuts off the display after 15 seconds of inactivity.

Specifications:

• Frequency Range: 1Hz-75MHz
• Resolution: Maximum 1Hz
• Input Impedance: 1.1M, parallel to 10pF
• Current Consumption: 50mA (7-9V input)
• Display: Digital LED
• PCB Size: 80 x 58mm (3.15 x 2.28 inches)
• Input Socket: BNC

What Makes This Kit Unique?

This Frequency Counter DIY Kit is engineered to simplify frequency measurements for electronics enthusiasts. With its easy-to-assemble components, this kit ensures an engaging and rewarding DIY experience. Whether you’re a beginner or a seasoned hobbyist, this kit provides practical functionality for your projects.

Benefits:

• Precision Measurements: Achieve high accuracy with minimal effort.
• DIY Learning Experience: Assemble the kit to improve your understanding of electronics.
• Compact and Portable: Small size makes it perfect for dynamic setups.
• Versatile Applications: Ideal for Arduino projects, RF testing, and general frequency measurements.

Package Includes:

• Complete set of resistors, capacitors, diodes, and transistors
• PIC16F628A programmed integrated circuit
• BNC socket, DC adapter, and crystal oscillator
• 7-segment LED displays

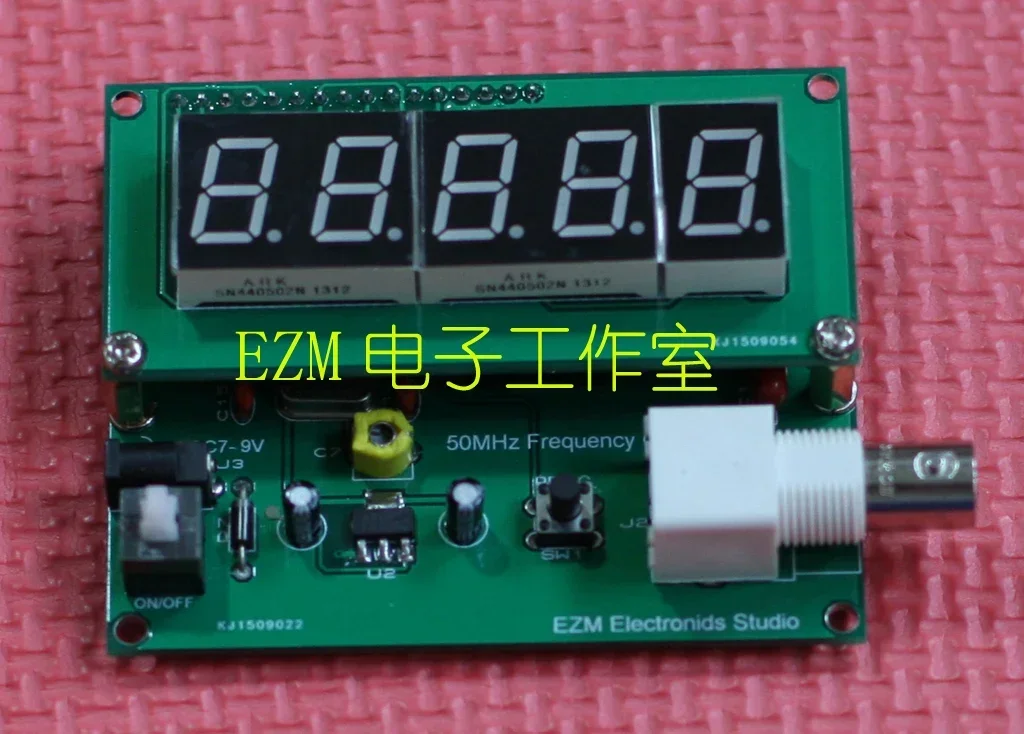

• Main and display PCBs
• Assembly instructions

Assembly Instructions:

1. Sort Components: Organize the provided resistors, capacitors, and other items.
2. Solder Components: Follow the PCB layout to solder each component accurately.
3. Connect PCBs: Attach the main PCB to the display PCB using copper pillars.
4. Install Input Socket: Connect the BNC input and DC power socket.
5. Test the Kit: Power on the device and measure sample frequencies for calibration.

Enhance your DIY electronics experience with the Frequency Counter DIY Kit. Perfect for hobbyists and engineers alike, this kit combines innovation and precision. Order now at https://tech.diydynamic.com!
