Motion Sensor Infrared Switch 180° Adjustable with Timer

Upgrade your DIY projects with this Motion Sensor Infrared Switch. Enjoy energy-saving, automatic control for lighting with 180° detection and timer features. Elevate your home automation and DIY projects with the Motion Sensor Infrared Switch, a reliable and energy-efficient solution designed for convenience and safety. This advanced motion sensor offers a range of features that make it ideal for both residential and commercial applications.

Key Features:

• Sensitive and Reliable:
  Built with high sensitivity and an integrated circuit, this motion sensor detects infrared energy from human movements, instantly activating connected devices when someone enters its detection field.
• Automatic Day/Night Adjustment:
  The sensor can automatically distinguish between day and night. Easily adjust the settings for full-day operation or low-light activation with ambient light settings ranging from 3 LUX to 2,000 LUX.
• Energy-Saving with Timer Functionality:
  Minimize energy consumption with a customizable time-delay feature. The timer resets with continuous motion detection and can be set from a minimum of 5 seconds to a maximum of 8 minutes.
• Adjustable Detection Range:

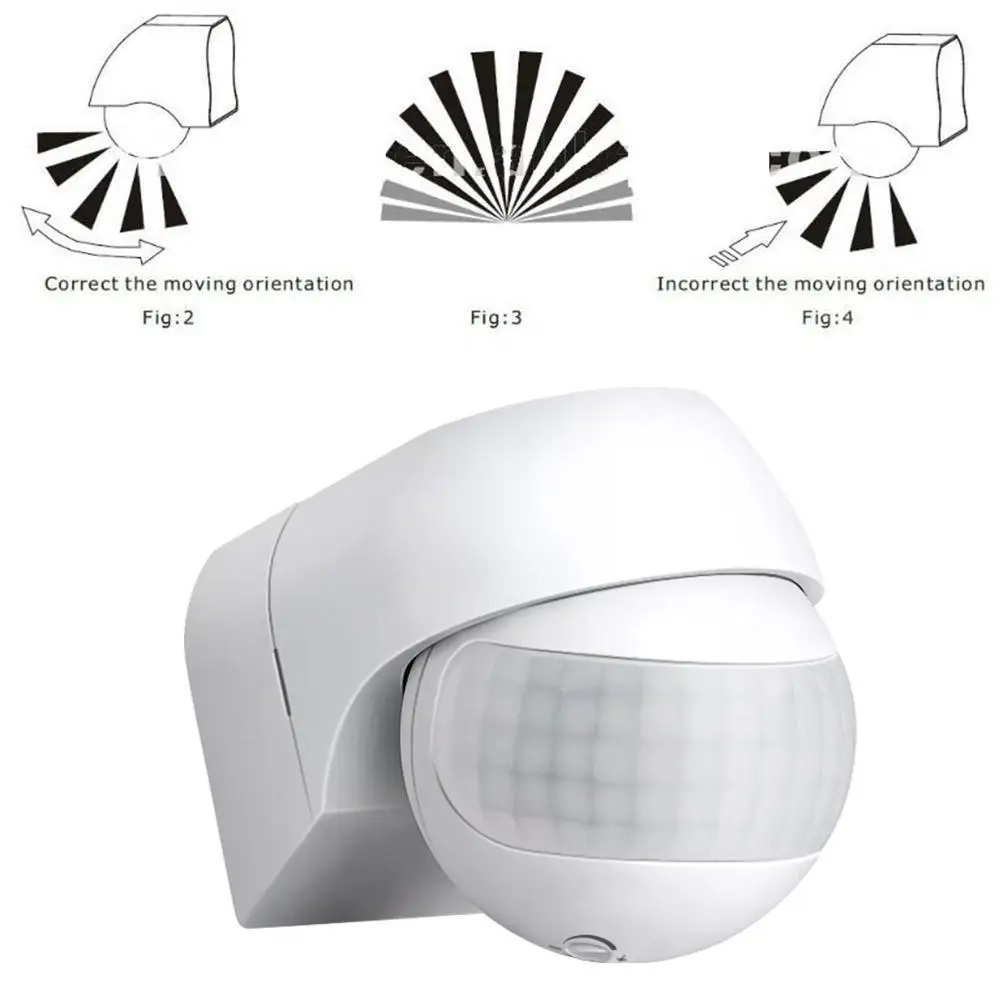

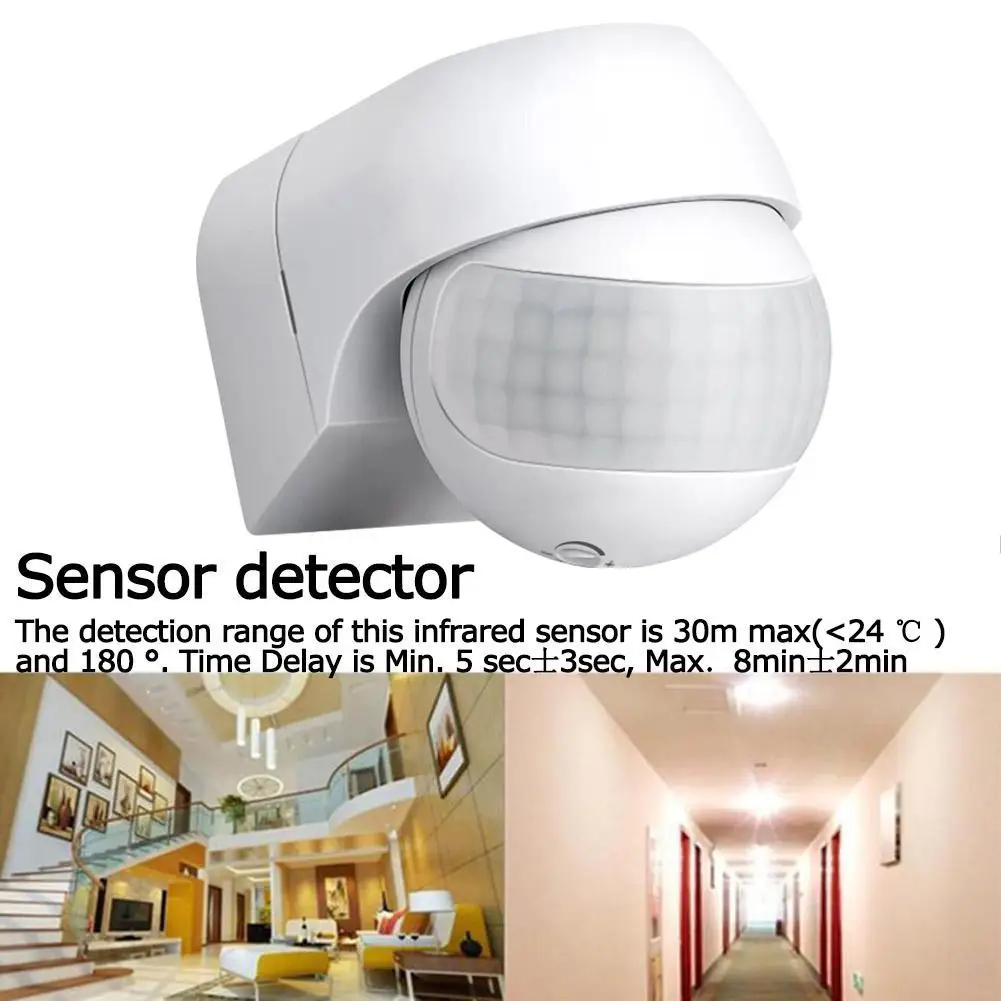

  Offers a wide detection angle of 180° and a range of up to 12 meters (at 24°C). The swivel design allows for 40° vertical and 100° horizontal adjustments, ensuring optimal coverage.
• High Load Capacity:
  Supports up to 800W for incandescent lamps and 200W for LED or energy-saving lamps, making it suitable for various lighting setups.
• Durable and Weather-Resistant:
  Designed to perform in a wide temperature range of -20°C to +40°C with 93% RH humidity tolerance, this sensor is perfect for both indoor and outdoor use.

Specifications:

• Power Source: 220-230V/AC
• Frequency: 50/60 Hz
• Rated Load: 800W (incandescent), 200W (LED/energy-saving)
• Detection Angle: 180°
• Detection Range: 12 meters
• Ambient Light Settings: 3-2000 LUX (adjustable)
• Time Delay: 5 seconds to 8 minutes
• Power Consumption: Approx. 0.5W
• Installation Height: 1.8-2.5m
• Size: 79×55.5×67.5mm
• Net Weight: 128g

Package Includes:

• 1 x Motion Sensor Infrared Switch

How It Enhances DIY Projects:

This motion sensor simplifies home automation tasks, making it a great addition to DIY projects focused on security, energy efficiency, and lighting control. Its adjustable detection range, time-delay feature, and ease of installation allow for a tailored and professional finish in your projects.

Usage Instructions:

1. Install the sensor at a height of 1.8 to 2.5 meters for optimal performance.
2. Adjust the detection angle and range to cover the desired area.
3. Set the ambient light and timer settings as per your needs.
4. Connect to compatible lighting or devices, ensuring not to exceed the rated load.
