Enhance your DIY electronics projects with the Multi-Channel Wireless Switch , a versatile and reliable solution for controlling LED lights, home automation systems, and other electronic setups. With long-distance control capabilities and multiple relay modes, this compact device is ideal for hobbyists and professionals alike.

Key Features:

• Wide Voltage Compatibility: Operates on 12V, 24V, and 36V power supplies.
• Long-Distance Control: Reliable signal transmission up to 1000 meters (environment dependent).
• Versatile Relay Modes:
  • Momentary Mode: Relay stays ON while the button is pressed and OFF when released.
  • Toggle Mode: Press once to turn ON, and press again to turn OFF.
  • Latched Mode: One button turns ON, another turns OFF.
• Customizable Configurations: Easily adjust modes to suit your project needs.
• High Load Capacity: Handles up to 10A for various DC or AC devices.

Specifications of Multi-Channel Wireless Switch

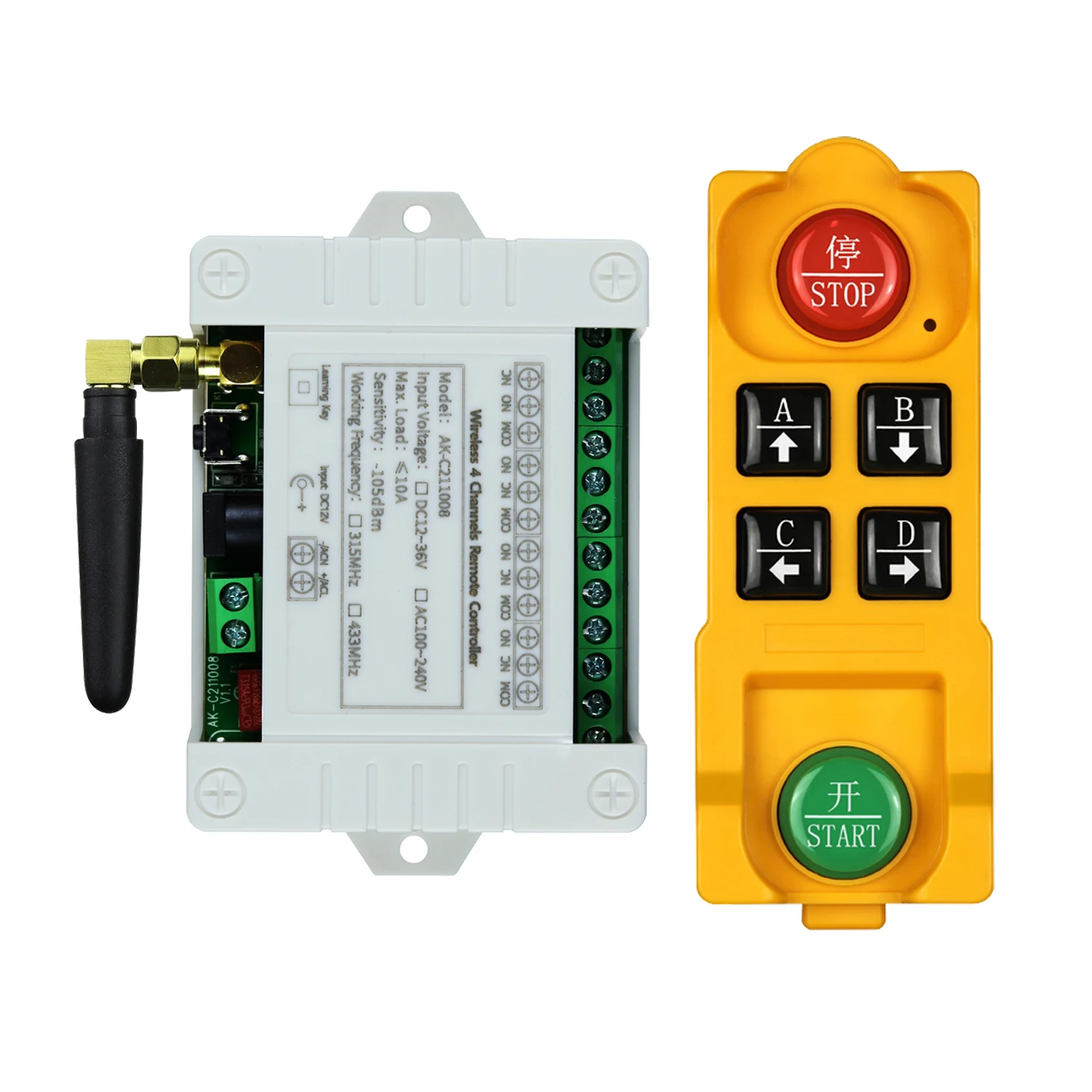

• Receiver (Model: AK-C211008):
  • Voltage Range: 12V–36V DC
  • Frequency: 433MHz
  • Low Power Consumption: <6mA in standby mode
  • Temperature Range: -40°C to +80°C

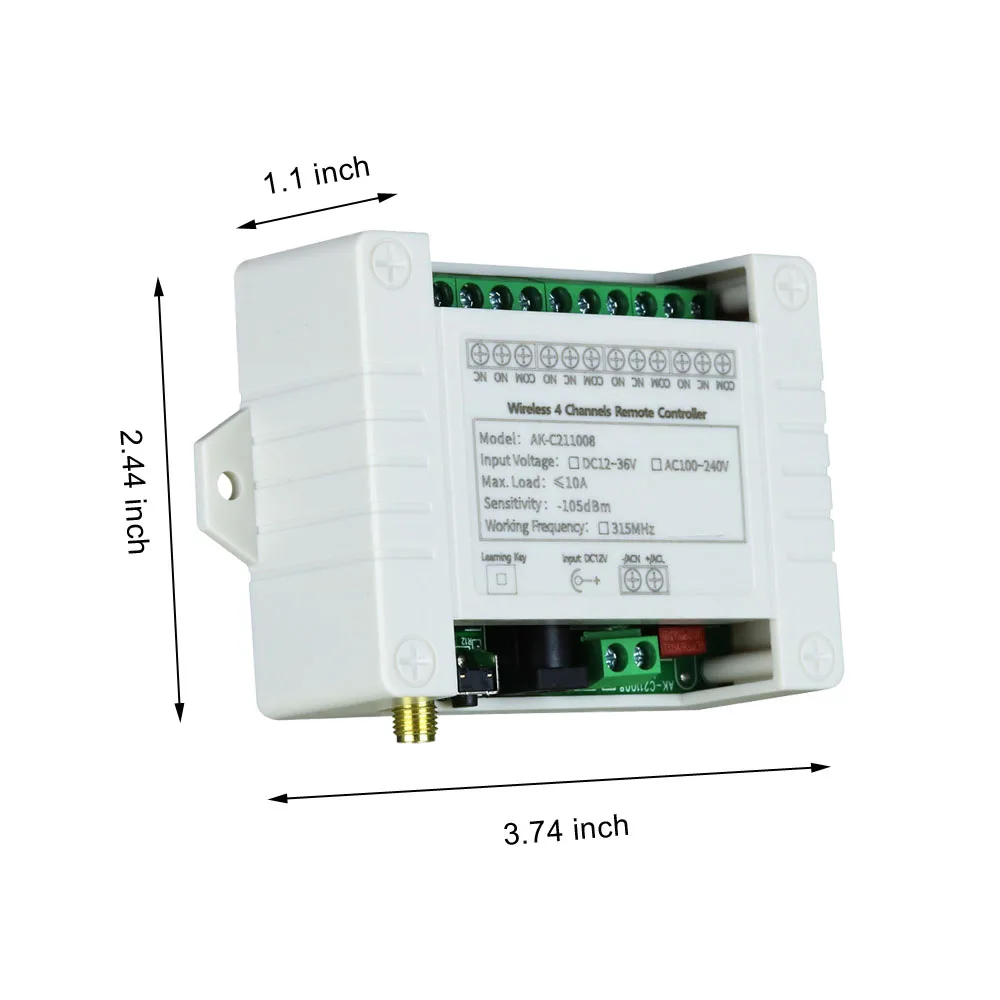

  • Compact Design: 96mm x 80mm x 29mm

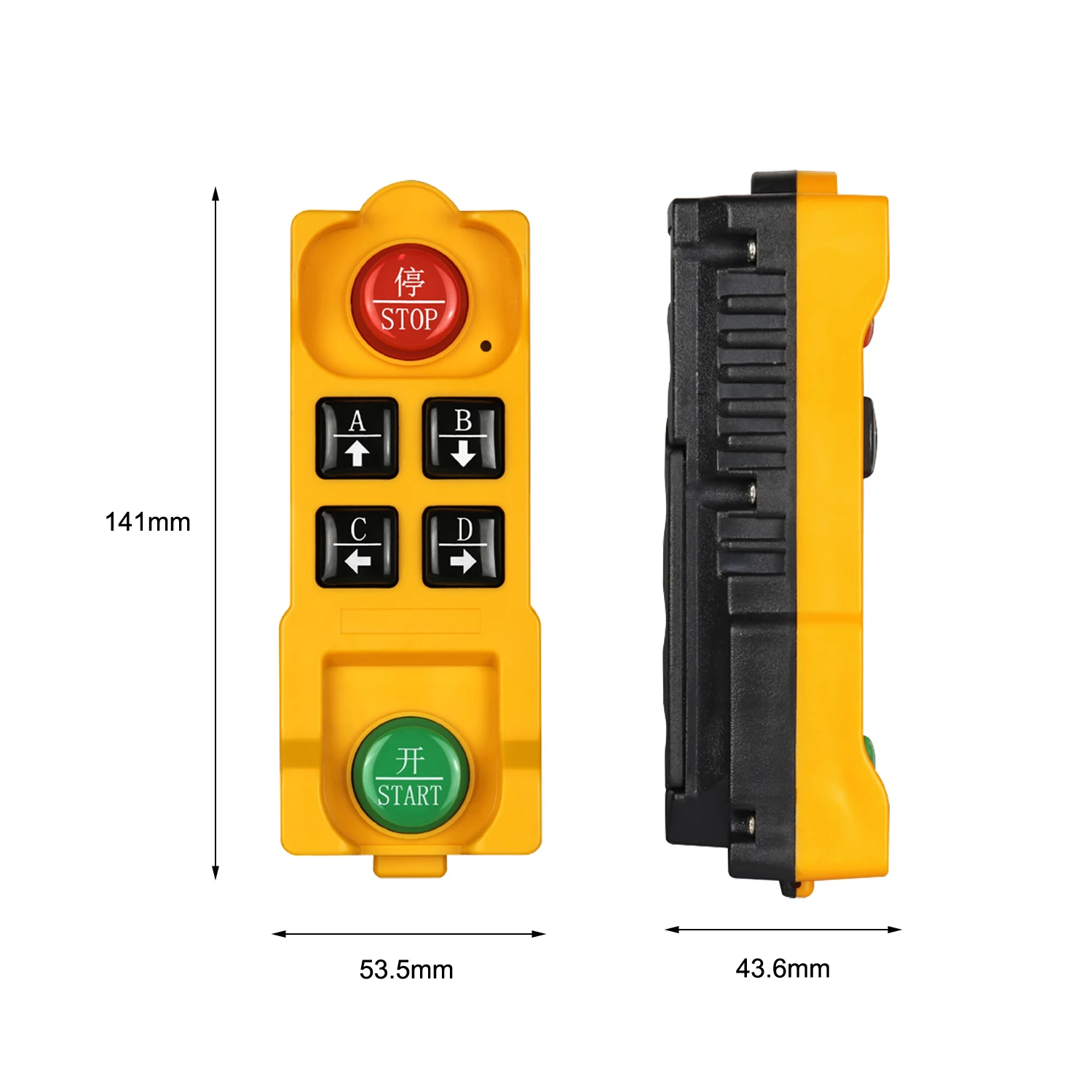

• Transmitter:
  • Frequency: 433MHz
  • Control Distance: 200–1000 meters
  • Battery Operated: Requires 2 AA batteries (not included)
  • Compact Design: 4-button functionality for easy operation

How It Helps in DIY Projects:

• Lighting Automation: Control LED lights in your home or workshop effortlessly.
• Home Automation: Integrate into smart home systems for added convenience.
• Electronics Projects: Simplify device control in hobby electronics setups.

Usage Instructions:

• Pairing the Remote:

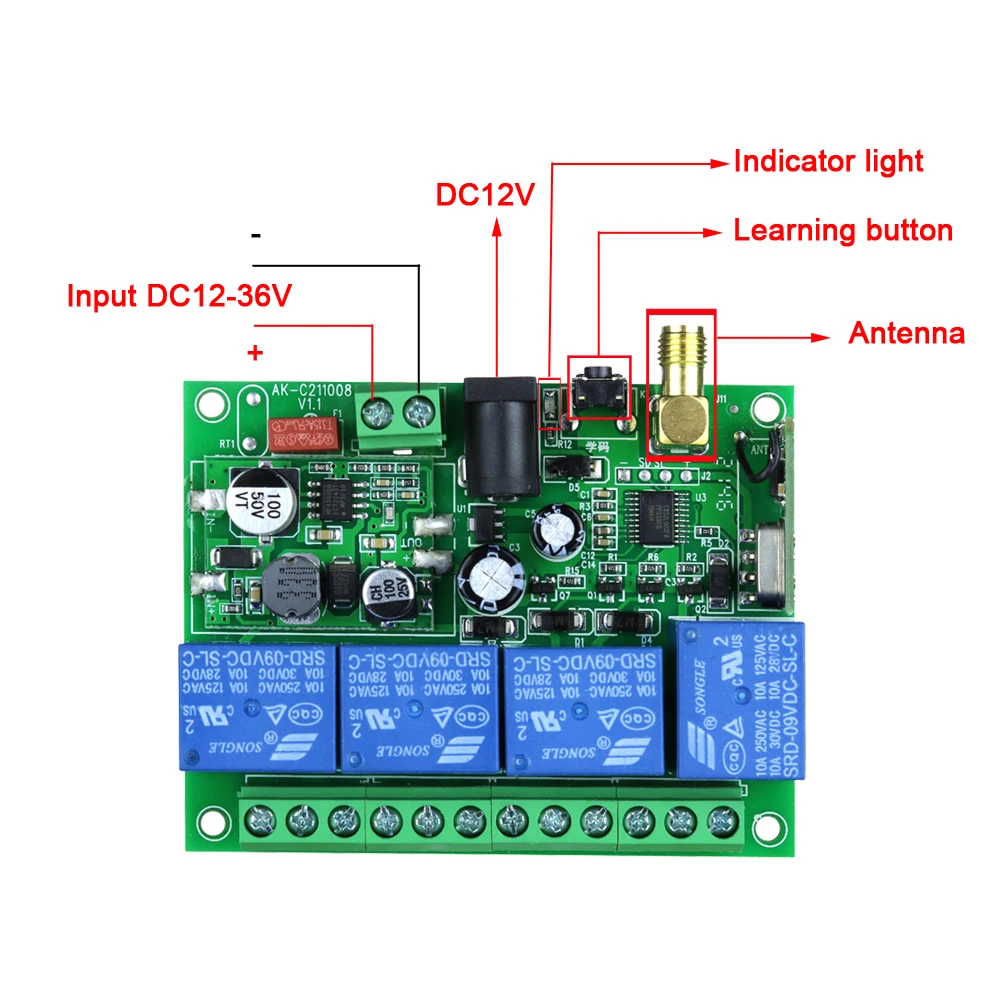

  1. Press the learning button on the receiver until the indicator flashes.
  2. Press any button on the remote; the indicator will flash three times to confirm pairing.
• Clearing Pairing: Hold the learning button for 8 seconds until the indicator flashes and turns off.
• Adjusting Modes: Press the learning button multiple times to switch between momentary, toggle, or latched modes.

Take control of your DIY electronics projects with this all-in-one 4-Channel RF Remote Control Switch.
